Compo S-Series

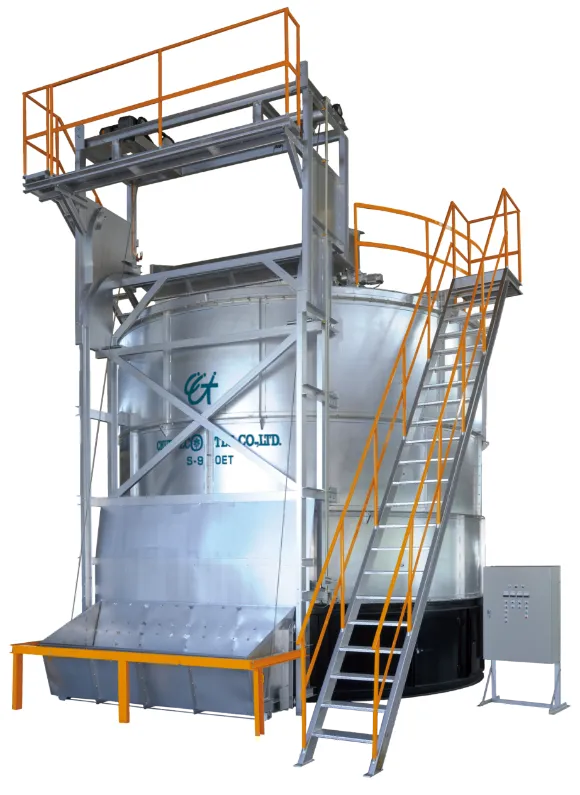

S-90ET
Full-universal type of COMPO S-90ET works well input objects with wide-rang whatever high and low gravity materials.
Main Specifications
| Model | S-90ET | |
|---|---|---|
| Fermentation-tank volume | 86m³ | |
| Intake bucket volume | 1.5m³ | |
| Unit weight | 30.0ｔ | |
| Power frequency | 50Hz | 60Hz |
| Upper blower | 2.0kw | 2.4kw |
| Lower blower | 11.0kw×2 | 9.5kw×2 |
| Hydraulic unit | 7.5kw | |
| Hopper motor | 0.2kw | |
| Intake-bucket winch motor | 2.2kw | |
| Exhaust blower | 2.2kw | |
| Heater | 5.0kw | |
| Total | 41.1kw | 38.5kw |
| Total excluding heater | 36.1kw | 33.5kw |
Typical Electoricity Usage
| Power frequency | 50Hz | 60Hz |
|---|---|---|
| Monthly (W Heater) | 24,750.0kwh/M | 22,878.0kwh/M |
| Monthly(W/O Heater) | 21,150.0kwh/M | 19,780.0kwh/M |
*Heater is necessary when intake air temperature is below 5 degree. "Lower blower of S-90ET works single or double according to the gravity of input object.
Treatment Capacity per day
| Capacity | Pig (78% water content) |
Poultry (60% water content) |
|---|---|---|
| Input object | 6.0 t | 12.0 t |
| Output product | 1.5 t | 7.2 t |
Note: Treatment capacities may vary according to season or local.

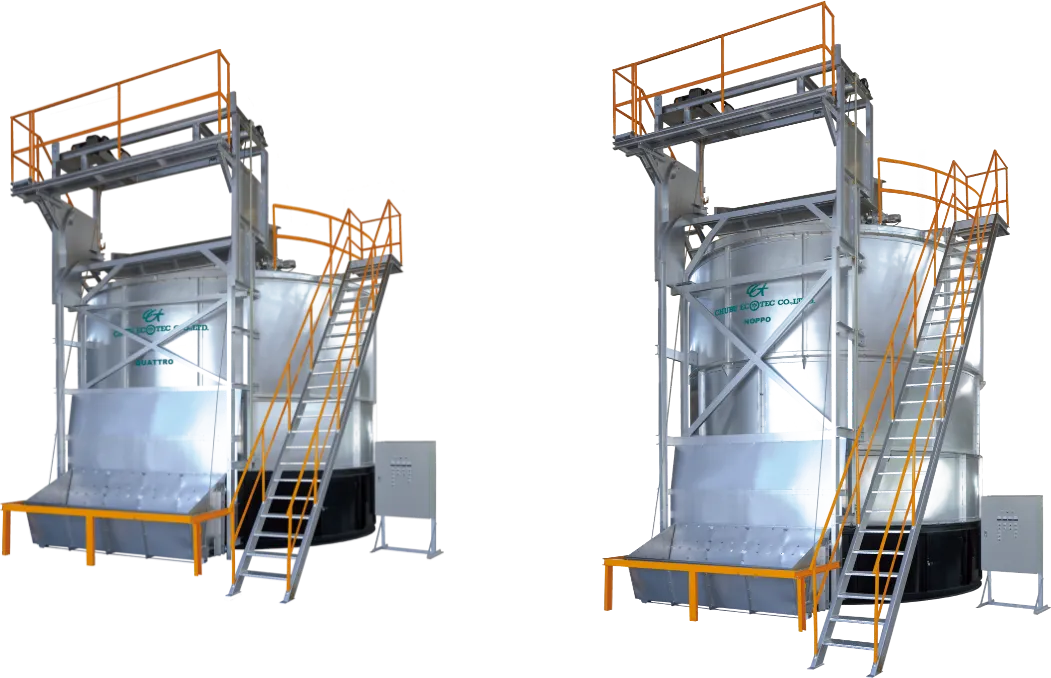

S-90ET QUATTRO & S-90ET NOPPO
New line-ups are based on S-90ET and optimized the design of high gravity for QUATTRO and low gravity for NOPPO.
Main Specifications
| Model | S-90ET QUATTRO | S-90ET NOPPO | ||
|---|---|---|---|---|
| Fermentation-tank volume | 69m³ | 102m³ | ||
| Intake bucket volume | 1.5m³ | 1.5m³ | ||
| Unit weight | 27.0ｔ | 35.0ｔ | ||
| Power frequency | 50Hz | 60Hz | 50Hz | 60Hz |
| Upper blower | - | - | - | - |
| Lower blower | 11.0kw×2 | 9.5kw×2 | 11.0kw×2 | 9.5kw×2 |
| Hydraulic unit | 7.5kw | 7.5kw | ||
| Hopper motor | 0.2kw | 0.2kw | ||
| Intake-bucket winch motor | 2.2kw | 2.2kw | ||
| Exhaust blower | 2.2kw | 2.2kw | ||
| Heater | 4.0kw | 4.0kw | ||
| Total | 38.1kw | 35.1kw | 38.1kw | 35.1kw |
| Total excluding heater | 34.1kw | 31.1kw | 34.1kw | 31.1kw |
Note: Power requirements of auxiliary equipment vary according to the installation method.
Typical Electoricity Usage
| Model | S-90ET QUATTRO | S-90ET NOPPO | ||
|---|---|---|---|---|
| Power frequency | 50Hz | 60Hz | 50Hz | 60Hz |
| Monthly (W Heater) | 22,590.0kwh/M | 20,430.0kwh/M | 22,590.0kwh/M | 20,430.0kwh/M |
| Monthly (W/O Heater) | 19,710.0kwh/M | 17,550.0kwh/M | 19,710.0kwh/M | 17,550.0kwh/M |
Treatment Capacity per day
| Model | S-90ET QUATTRO | S-90ET NOPPO | ||
|---|---|---|---|---|
| Capacity | Input object | Output product | Input object | Output product |
| Pig(78% water content) | 6.0 t | 1.5 t | 5.0 t | 1.3 t |
| Poultry(60% water content) | 10.6 t | 6.3 t | 13.7 t | 8.2 t |
Solution of Environment
Full-universal type of COMPO S-90 works well input objects with wide-rang whatever high and low gravity materials.
New line-ups are based on S-90 and optimized the design of high gravity for QUATTRO and low gravity for NOPPO.

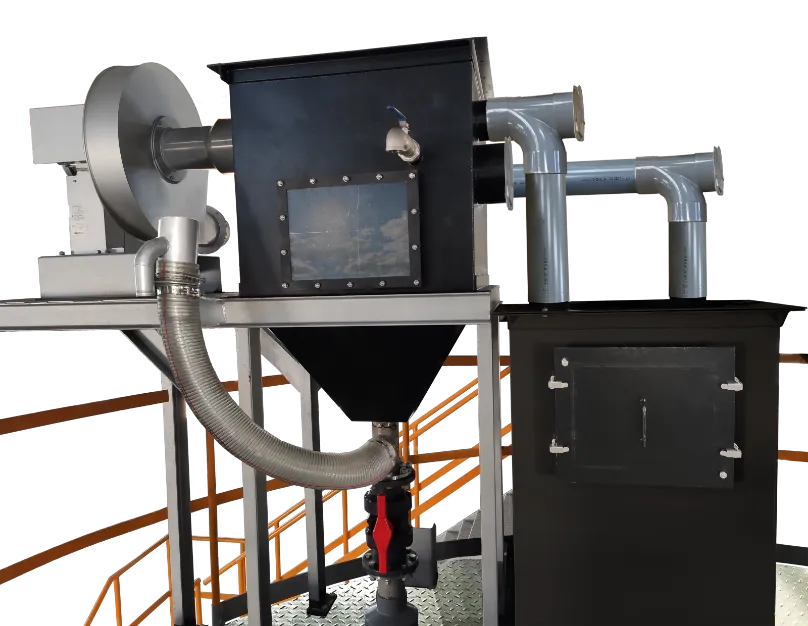

Renewed Exhaust System
- Cyclone Dust Remover
- Micro-dust canceler.
- Head space reducer.
- Heat loss protection.
- Anti-rust design.
- Semi-maintenance free.
- Venturi Water Deodorizer
- Dissolution enhancer.
- Compact design.
- Sludge dropper.
- Anti-rust design.
- Semi-maintenance free.
- Special Exhaust Blower
- Anti-rust design.
- Weather proof.
- Tough durability.
- High-efficiency motor.
- Produced by CHUBU ECOTEC made in Japan.
